The reinforcing was designed to provide sufficient strength during handling and all possible serviceable stresses, as well as load or impact loads.

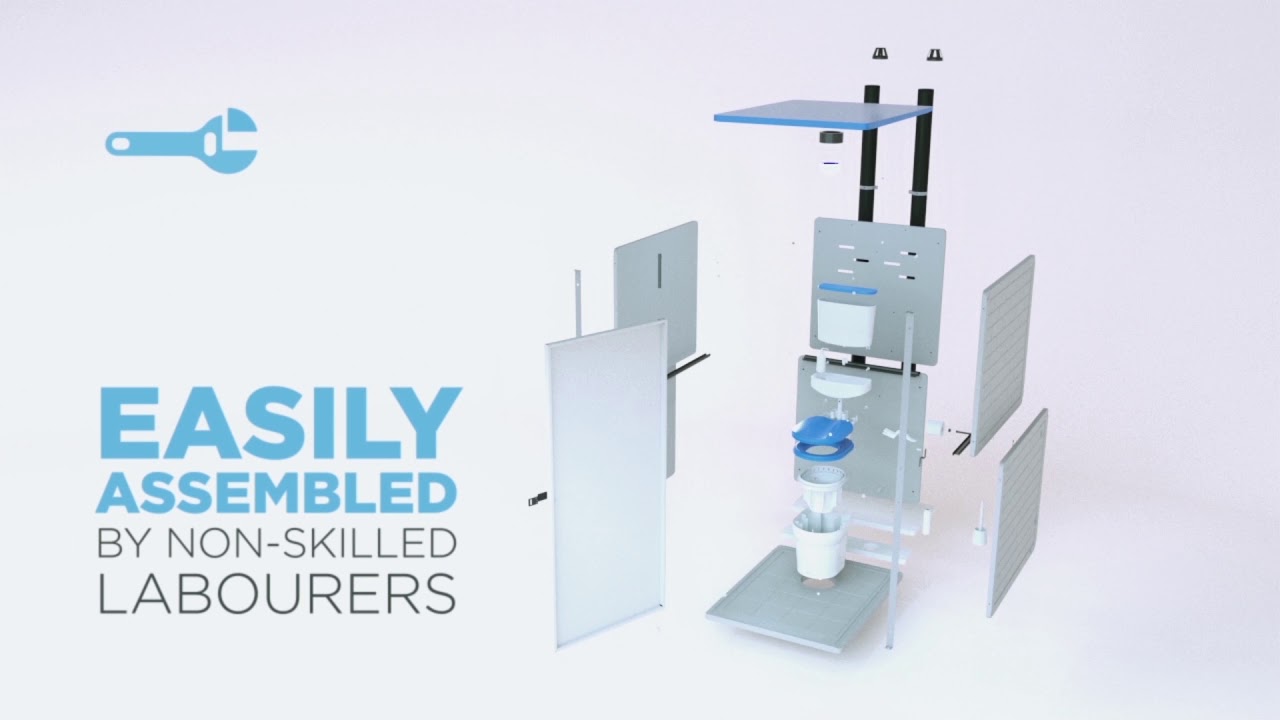

The above structure is available in kit form and is designed to be assembled by non-skilled persons (men and women) from local communities with minimaltraining. The system positively supports local community involvement and provides employment.

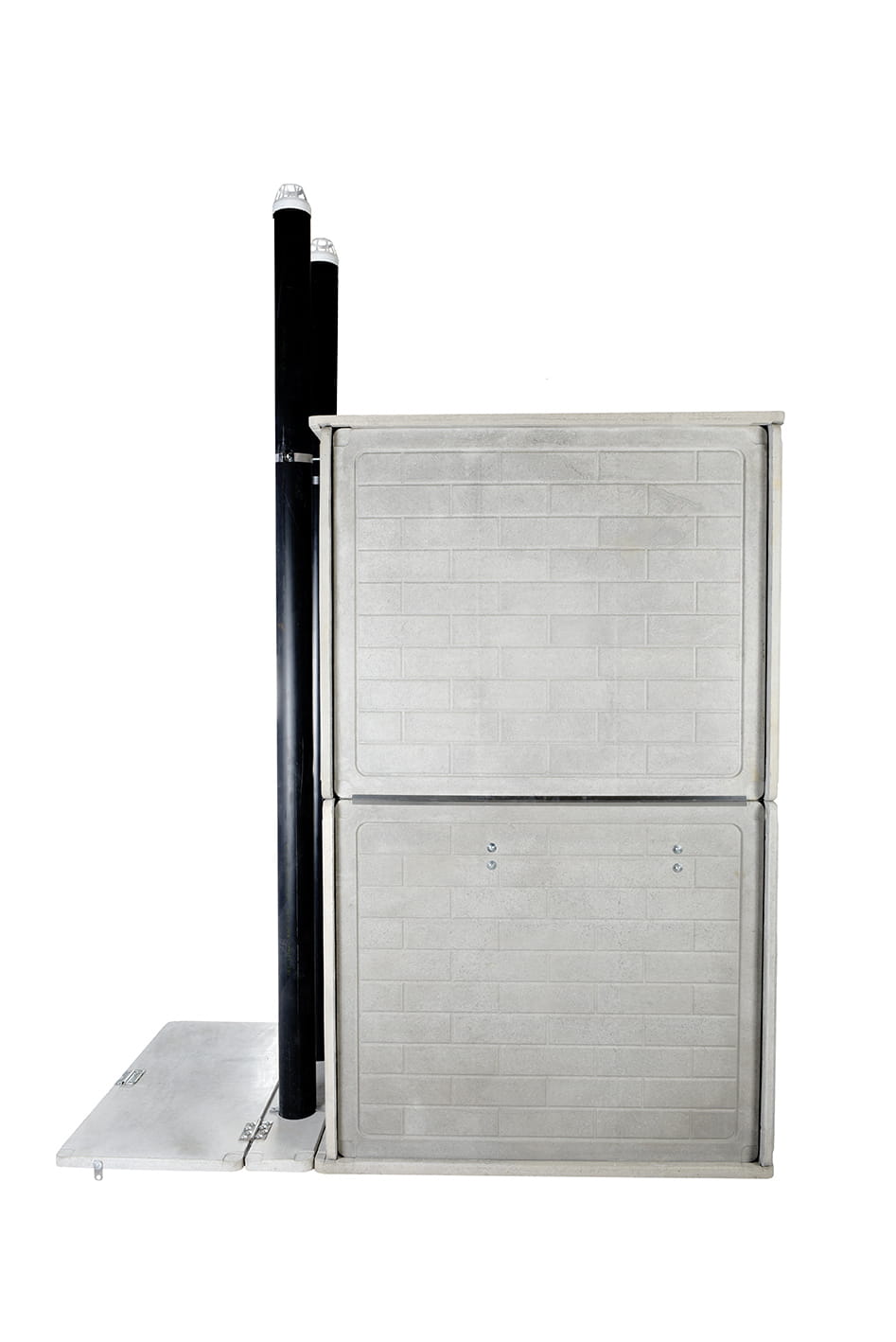

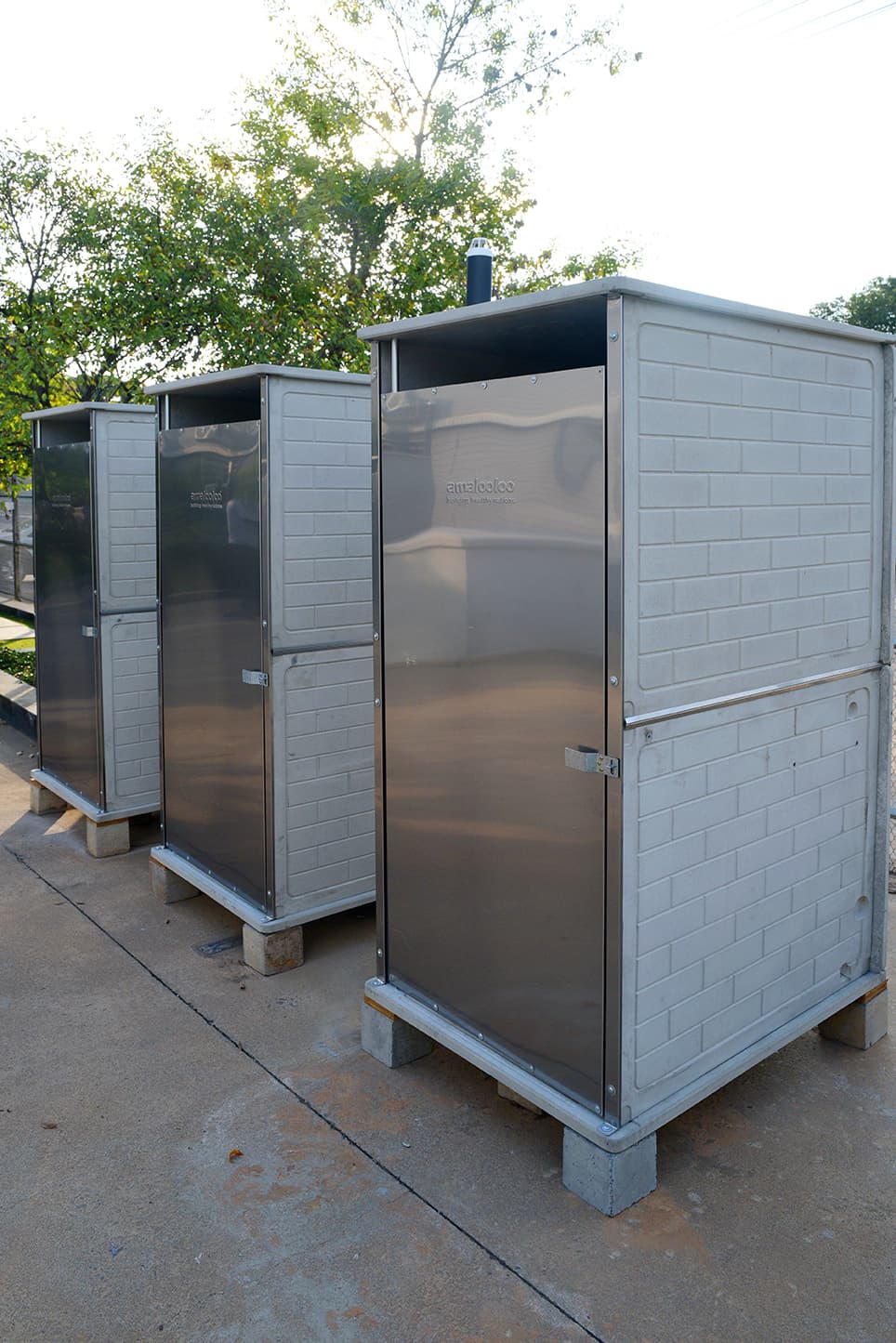

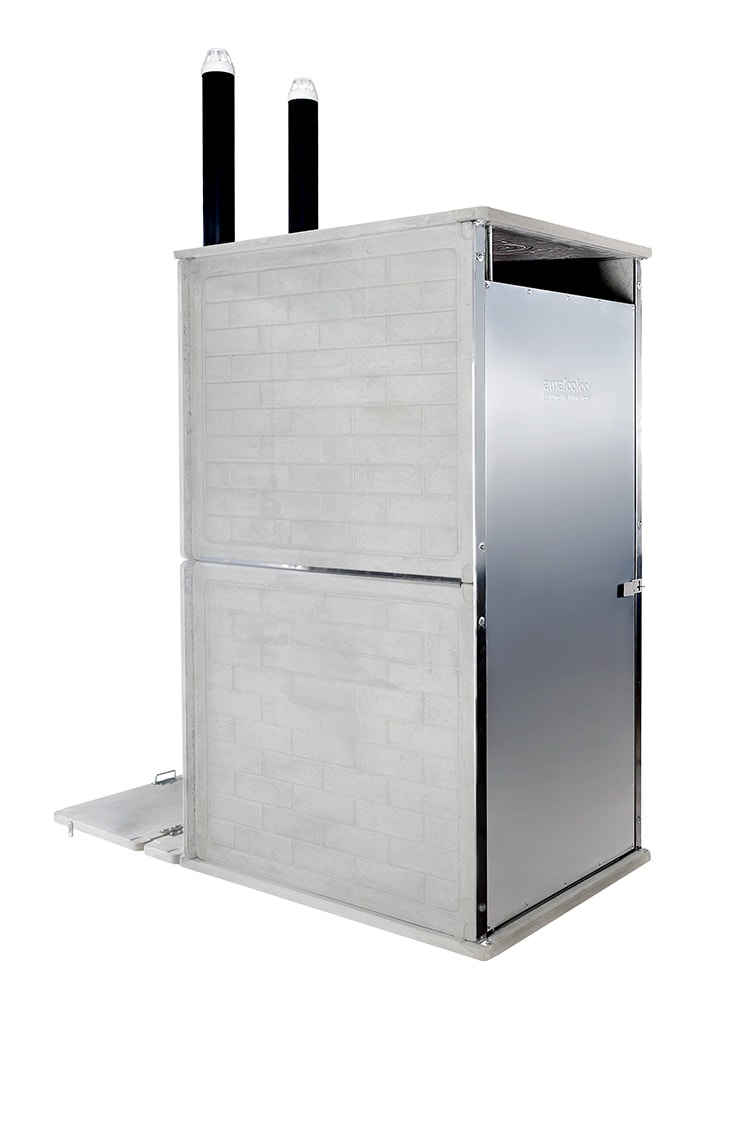

The complete structure can be dismantled and re-erected elsewhere by unskilled labour. The Super Structure can be upgraded to a Waterborne system without structural changes. The structure is able to withstand wind forces as laid down by SABS 0160 – 1989. The structure is able to withstand the vertical movement of heaving sub-soils without cracking.

AMALOOLOO WATERBORNE SYSTEM
The Amalooloo toilet system is upgrade-able to a waterborne system without any structural changes. The Waterborne System consit of:
Strap-on Boss connector from Basin Waste
Braided connector to cistern
Outside tap
Optional Wash Basin
Ball-O-Stop, Calvinised Steel Pipe, Water Inlet.

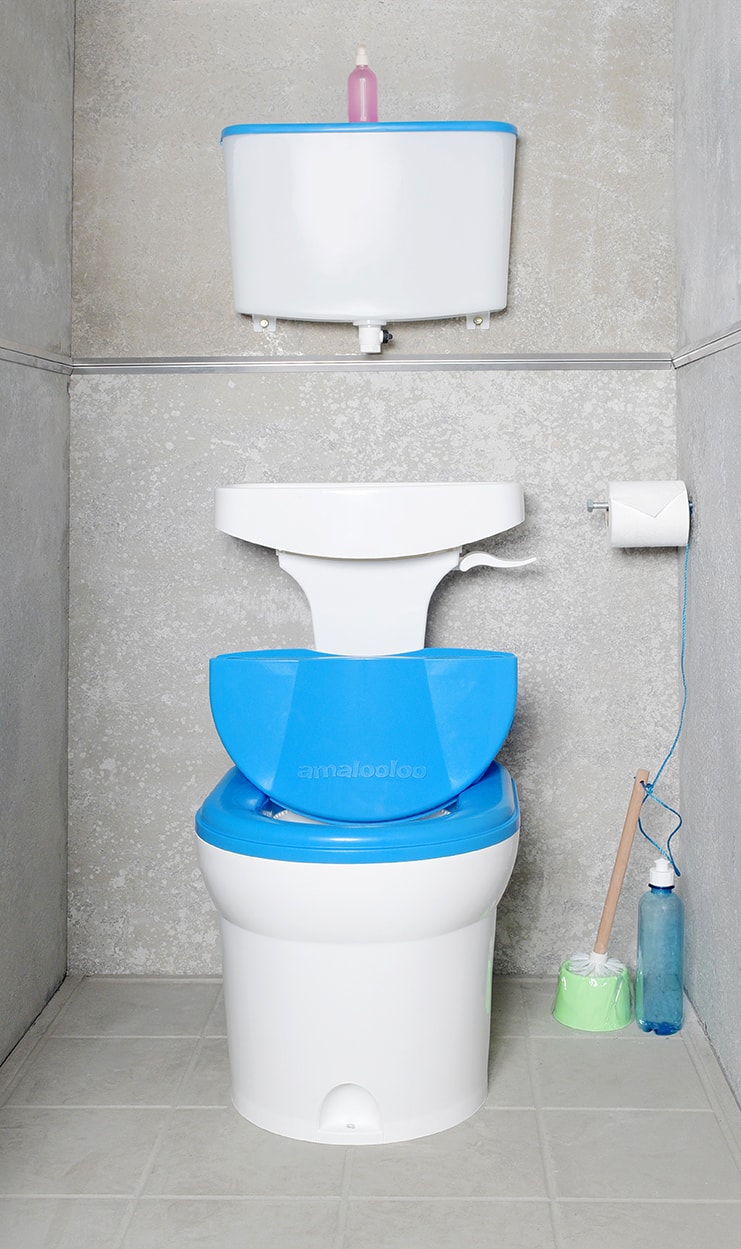

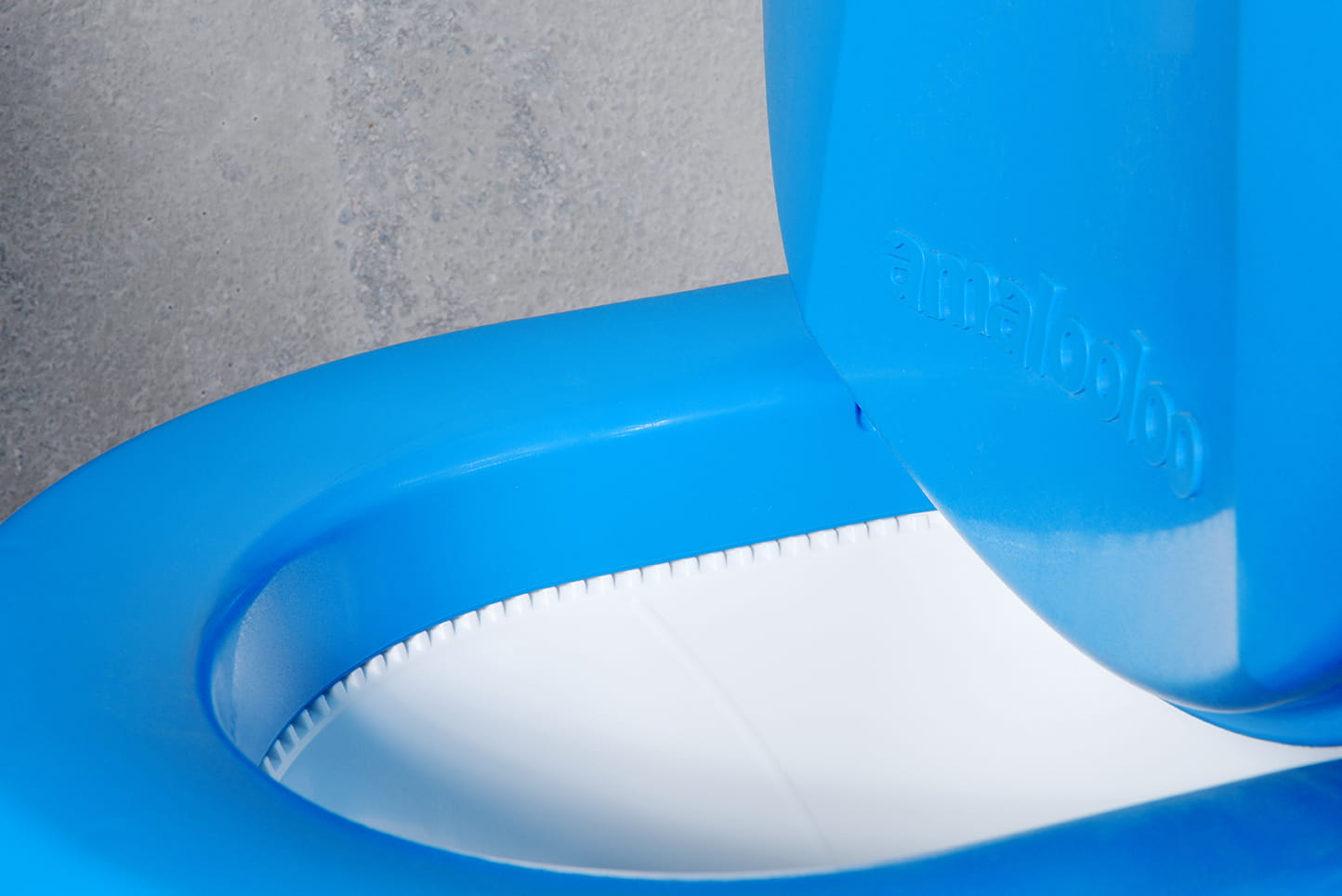

THE AMALOOLOO PEDESTAL IS DESIGNED TO MEET THE NEEDS OF PEOPLE IN THAT IT:
Completely separates fluids and faeces at source. It consists of an outlet that uses the hand washing water to rinse the pedestal and improves the moist content under the garden. It is strong, durable and aesthetically appealing. It consists of a built- in child safety seat and lid.
OPTIONAL EXTRAS
External Concrete wash basin
Rainwater Harvesting Roof
Concrete wash basin with connections can be used for grey water disposal.
The internal wall panels can be clad with white sheeting or tiles, especially for clinics & hospitals.
Educational Posters: Health & Hygiene, Aids Awarenes and Agricultural
Solar Light

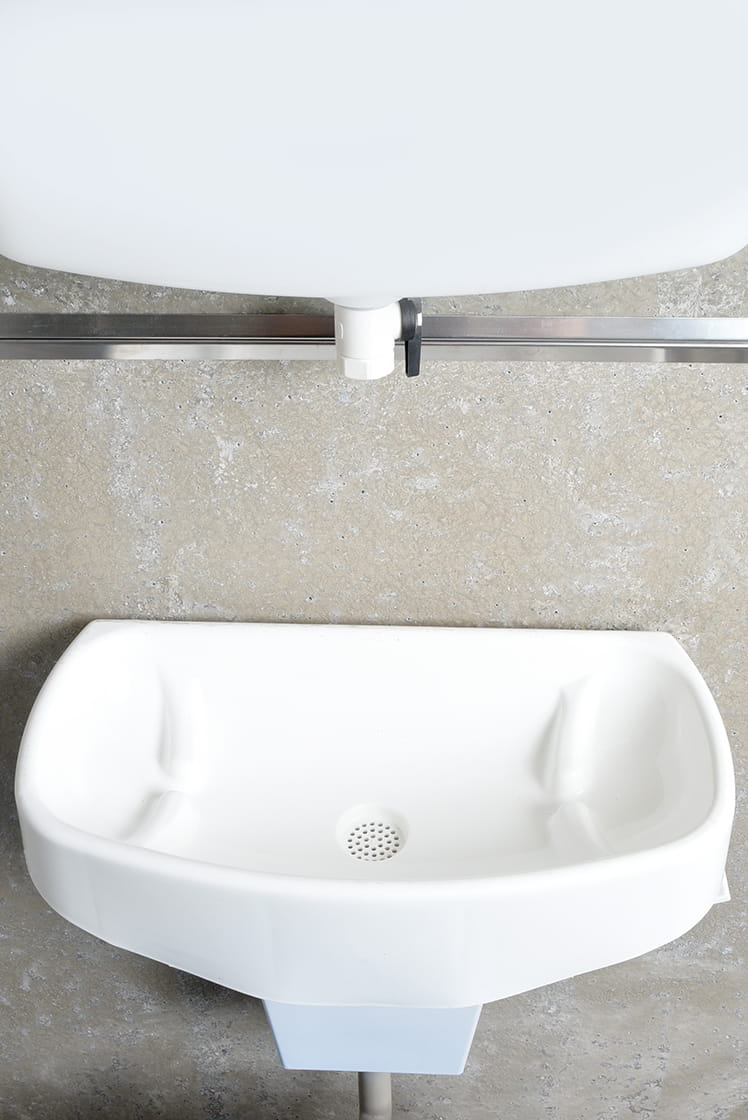

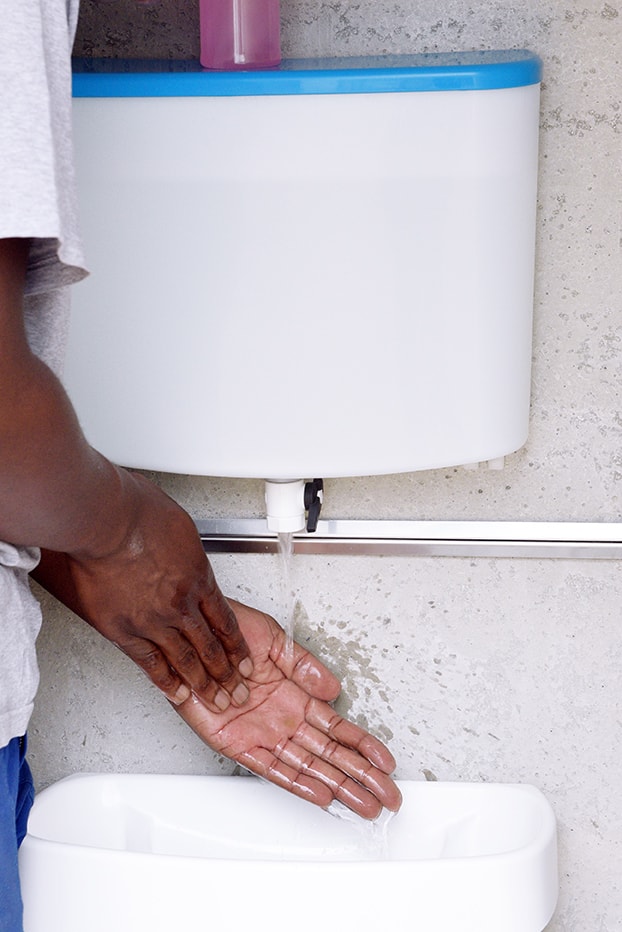

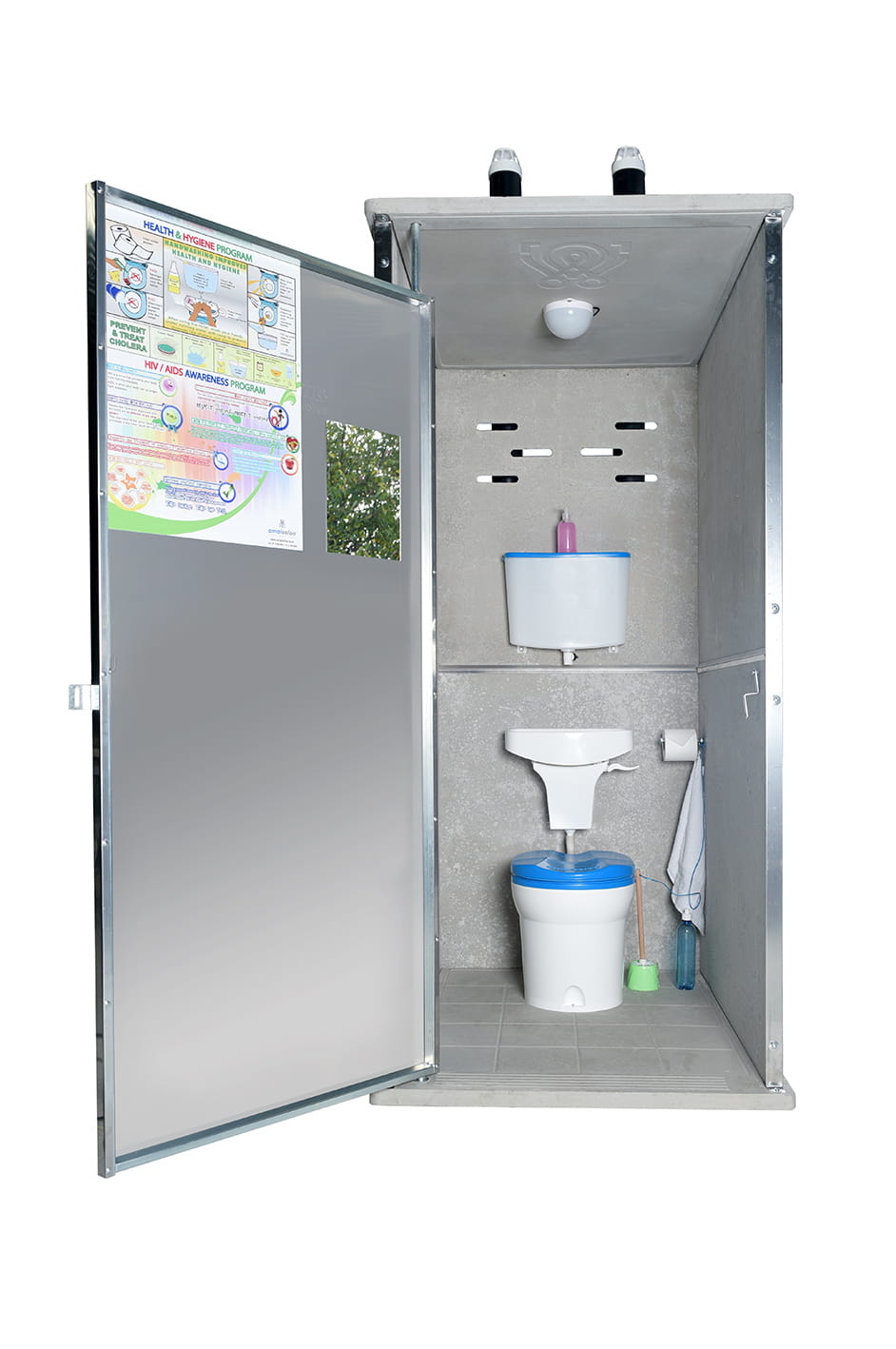

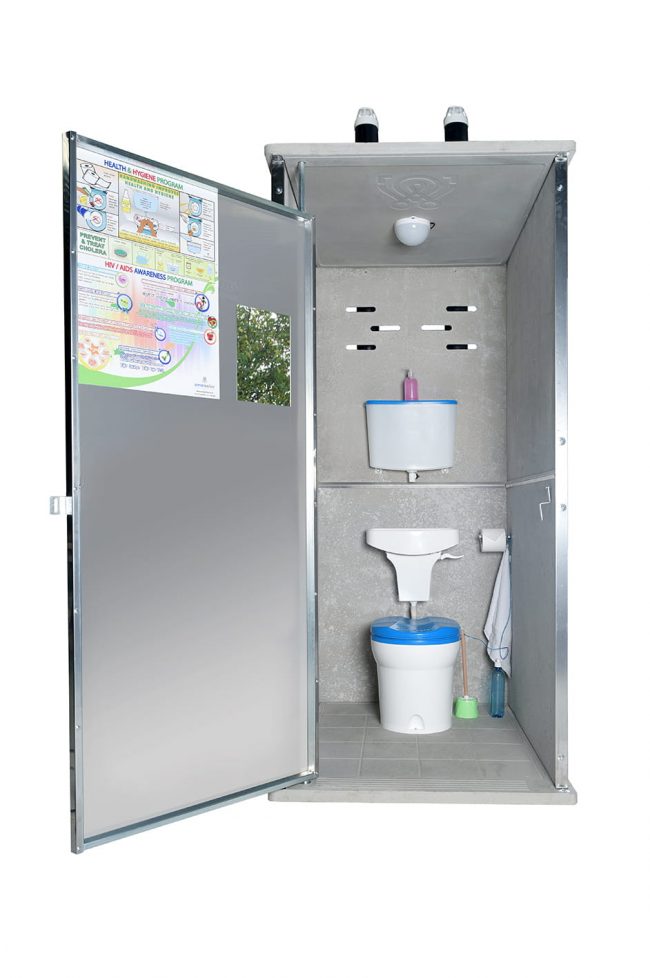

HAND WASHING FACILITY

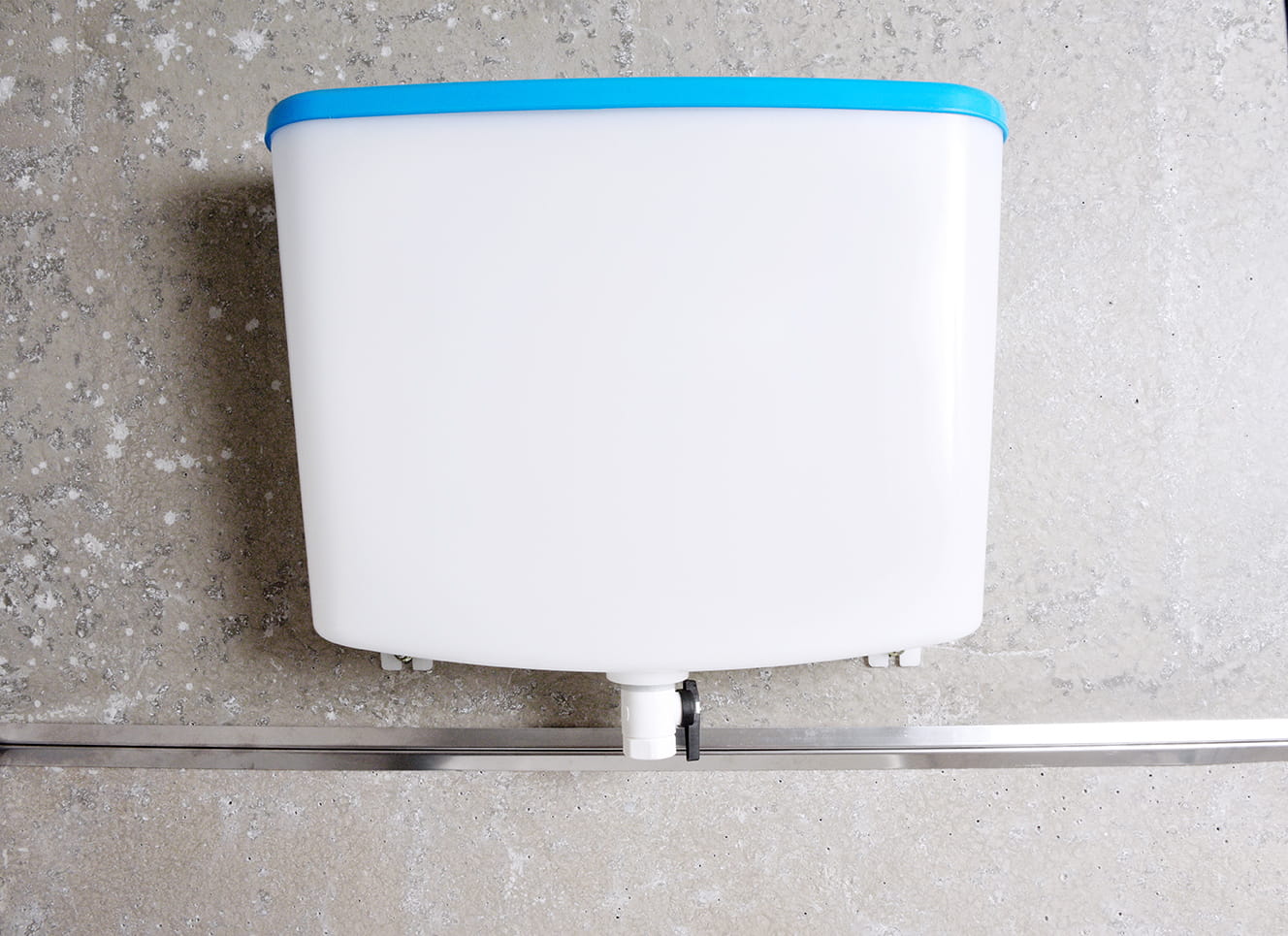

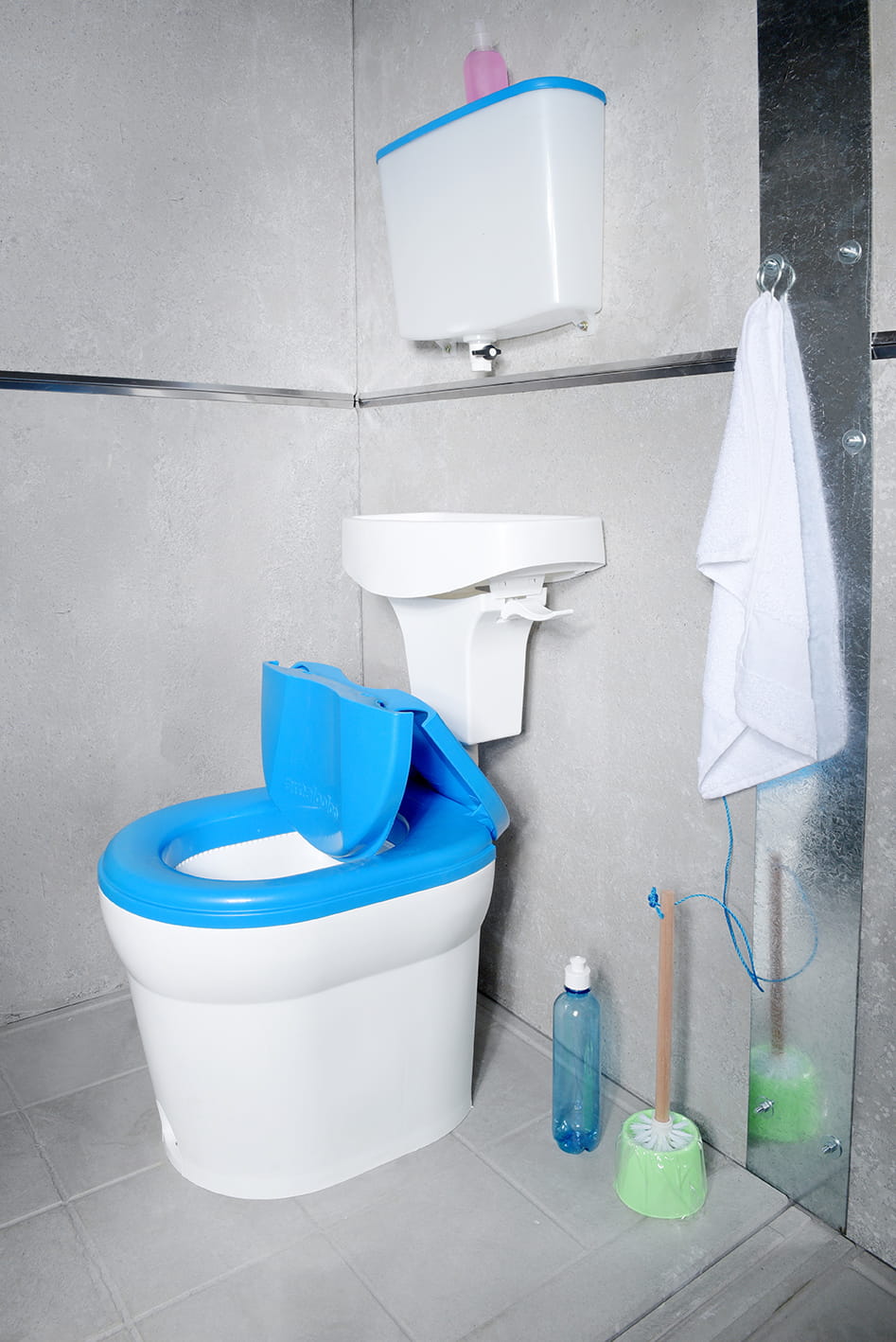

A hand washing facility inside the toilet where hands can be washed under running water with soap – resulting in unsurpassed health and hygiene benefits. The system requires only about 300 milliliters of water per wash and if there is no water the system still functions as a dry system. It needs to be mentioned that where people live there is water but not necessarily enough for waterborne systems, but surely enough for hand washing. This principal has been advocated by the World Health Organization (WHO) for decades as it reduces contamination and sanitation related diseases like diarrhea, dysentery, pneumonia etc, drastically resulting in poverty eradication, reducing Health budgets, improving dignity, improving school attendance and manymore. The Hand washing facility comprises of a Reservoir, hand washbasin, and a cistern, all functioning to bring about the message of health and hygiene

AMALOOLOO PRODUCTS
• Safe storage of faeces
• No underground water pollution

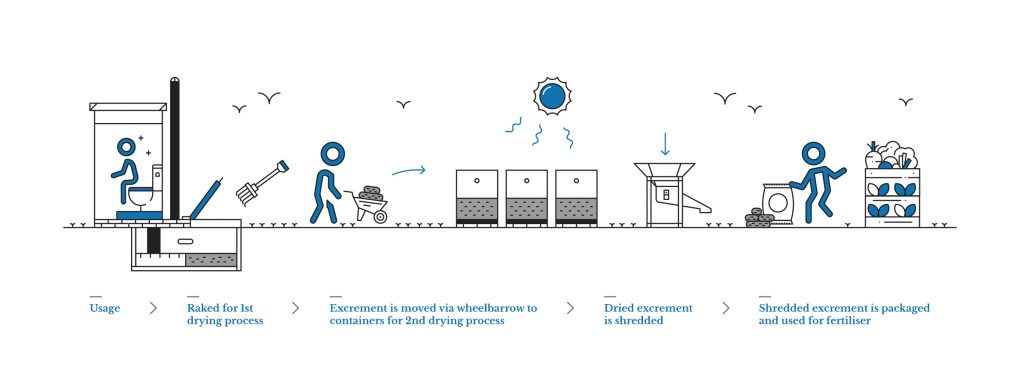

• Complete dry aerobic composting system

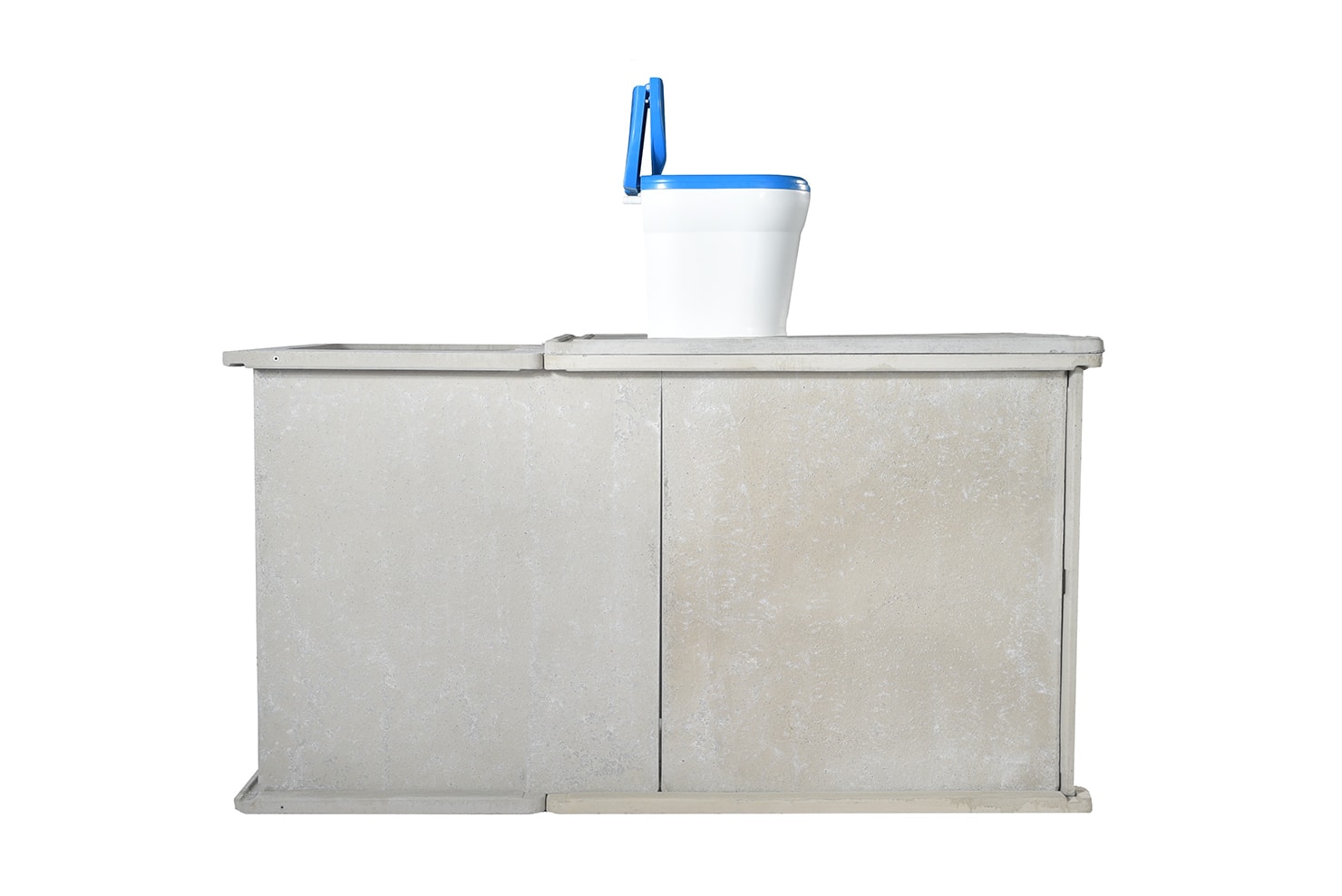

Betram through it’s research and development programme designed a sanitation system that holistically fulfill these desires of an ultimate pit system. The concrete lined bottom Pit Structure consists of:
Long beams (4)
Short beams (5)
Side panel (4)
End panel (2)
Back cover slab (1)
